In today's fast-changing world of electrical infrastructure, there's never been a bigger need for reliable and efficient power transmission solutions. A report from Allied Market Research predicts that the global market for Aluminum Wires and cables could hit around$38.68 billion by 2027, thanks largely to more investments in renewable energy and smart grid tech.
Leading the charge in this shift is the Concentric Aluminum Cable, which is praised for its high conductivity and lightweight nature. Laurence Si Electric Co., Ltd. is really pushing the envelope with their innovative approach and solid technical skills, working hard to provide top-notch solutions that help improve how power is transmitted and distributed around the globe. When it comes to picking the right Concentric Aluminum Cable, we hope these simple tips will help folks in the industry make smarter choices—especially given how quickly theinternational power market is evolving.
Understanding Concentric Aluminum Cable Specifications
When you're choosing the best Concentric Aluminum Cable, it's pretty important to get a good handle on its specs. Why? Well, it helps make sure your project runs smoothly and safely. These cables have a pretty unique setup — there's a central conductor, with layers of aluminum strands wrapped around it. That design isn’t just for looks; it actually boosts conductivity and helps cut down electromagnetic interference. That’s why they’re often the go-to for high-voltage stuff. So, don’t forget to check out the cable’s size and how well it conducts electricity. Usually, your project's specific needs will help you decide on the right diameter and conductor area since those things directly impact how much current the cable can handle.
And here's another thing — pay close attention to the insulation and protective layers, too. There are different materials out there, like XLPE or PVC, each with their own thermal limits and resistance qualities. It's also super important to think about where you’ll install the cable because environmental conditions can really affect how it performs over time. Make sure to look at the manufacturer’s specs — things like voltage rating, temperature limits, and mechanical strength — to be totally confident that the cable you pick will meet all the requirements of your electrical setup.
10 Essential Tips for Choosing the Best Concentric Aluminum Cable
Key Factors to Consider in Cable Size and Length Selection
When you're choosing Concentric Aluminum Cables, one of the biggest things to think about is the size and length of the cable. Honestly, these factors can make a huge difference in how well your electrical system works and how efficient it is. According to the National Electrical Manufacturers Association (NEMA), picking the right cable size is key—it determines how much current the wire can handle and helps minimize energy loss so you won’t have to worry about overheating. For example, using a thicker cable with a bigger diameter can cut down resistance, which is super important especially when you're dealing with long-distance power transmission. Basically, if you pick the right cable size based on the load you're expecting, you could end up saving up to 15% on energy costs over time—that’s pretty significant, right?
Now, about the length—this is just as important. Longer cables tend to have more resistive losses, which can mess with your system’s performance. There's actually a study from the IEEE that confirms this. It’s a good idea to calculate how much voltage drops across the cable’s length; typically, you want to keep that below 3% for feeders and around 5% for branch circuits. When you pay attention to both the size and length of your cables, you’re basically setting yourself up for a more reliable, longer-lasting system—and honestly, that’s what it’s all about, making sure everything runs smoothly in the end.
The Importance of Insulation Types for Concentric Aluminum Cables
So, when you're choosing concentric aluminum cables, it’s pretty important to get a good grasp on the different types of insulation. I mean, the insulation isn't just there to keep the conductor safe from stuff like moisture or dirt—it's also a big factor in how long the cable lasts and how well it works. You’ve probably heard of some common options like PVC, XLPE, and EPR — each one kind of has its own perks. PVC is super affordable and what most folks go with because of that. XLPE, on the other hand, handles heat way better and can carry more current, which is a big plus. And then there's EPR, which is really flexible and resistant to aging, making it perfect for tougher environments where things get rougher.
On top of that, there's been a lot of talk lately about recycling electrical cables, which is a big deal when it comes to the end of their life cycle. Recycling not only helps cut down on waste but also lets us recover some valuable materials. As more people push for eco-friendly practices, understanding how the insulation affects recyclability becomes kind of crucial. If you pick cables with insulation that’s easier to recycle, you're actually helping the environment — reducing waste and supporting a circular economy in the electrical industry. So, yeah, making mindful choices here really can make a difference!
Assessing the Voltage Rating and Current Carrying Capacity
When you're picking out the best concentric aluminum cable, one of the most important things to look at is its voltage rating and how much current it can handle. Basically, the voltage rating tells you the maximum voltage you can safely apply without worrying about the cable failing. For aluminum cables, the guidelines from NEMA suggest a voltage rating that lines up with industry standards for different uses. For example, you’ll typically see ratings from around 600V for home wiring up to 35kV for industrial setups, making sure the cable can handle the electrical loads you throw at it.
On the other hand, the current carrying capacity—often called ampacity—is just as crucial. That basically means how much current the cable can carry without overheating. Factors like the surrounding temperature, how the cable's installed, and nearby conductors can all impact this. According to IEEE, thicker aluminum wires (with a bigger cross-sectional area) can carry more current. For example, a 500 mm² aluminum conductor might handle around 700 amps under normal conditions. So, it’s super important to check the NEC tables and manufacturer info to pick a cable that actually meets the specific needs of your setup and environment.
Analyzing Environmental Factors: Temperature and Installation Conditions
Picking the right concentric aluminum cable isn't just about specs — you've got to really think about the environment where it'll be used. Things like temperature and how you install it can make a big difference. I mean, extreme heat can make the aluminum expand, which might put some strain on the cable and even mess with the insulation. On the flip side, really cold temps can cause contraction, tugging at connection points and possibly causing issues. So, it’s super important to check what kind of temperature ranges the cable will face throughout its life — that way, you’re sure it’s up to the job.
And don’t forget about installation conditions! Where you put the cable matters a lot — whether it’s underground, exposed to moisture, or dealing with some mechanical stress. A good installation can save you a lot of headaches later on. For example, putting protective conduits in damp spots can keep moisture at bay, and making sure everything’s properly spaced and supported helps avoid tension problems during setup. Basically, taking these factors into account means you’ll make a smarter choice, choosing a cable that’s reliable and safe in the long run.
Comparing Cost vs. Performance: Getting Value for Your Investment
When you're trying to pick the best concentric aluminum cable, it’s pretty important to find that perfect balance between cost and performance—after all, you want to get the most bang for your buck. Recent numbers from the International Energy Agency (IEA) show that more folks are leaning toward using aluminum cables these days, with a 15% jump in adoption compared to traditional copper wiring. The main reasons? Aluminum is lightweight, resistant to corrosion, and usually easier on your wallet, which makes it a popular choice for today's electrical setups.
Laurence Si Electric Co., Ltd. really stands out in this crowded field. They've got the technical know-how and innovative solutions to deliver high-quality aluminum cables that meet global standards. Investing in their products isn’t just about performance—it’s about reliability, too. A recent study from the Global Cable Market Analysis mentions that companies choosing top-tier aluminum cables, like those from Laurence Si Electric, end up cutting down their overall operational costs by around 20% over time. That’s because these cables are more efficient and last longer, which really highlights how crucial it is to pick the right product if you’re aiming for long-term value.

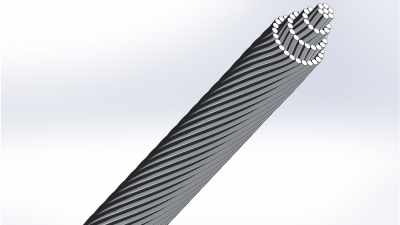

Exploring the Benefits and Applications of AAC IEC 61089 All-Aluminum Conductors in Modern Electrical Systems
In today's rapidly evolving electrical landscape, the application of All-Aluminum Conductors (AAC) under the IEC 61089 standard presents numerous advantages for modern electrical systems. Constructed from high-grade AL1 aluminum, AAC conductors are designed to optimize electrical conductivity, ensuring efficient power transmission with minimal energy loss. This makes them a reliable choice, particularly for medium and low-voltage distribution networks, where efficient energy management is paramount.
The all-aluminum structure of AAC eliminates the need for heavy steel cores, making it an ideal solution for short-span, low-tension overhead lines. This feature is especially beneficial for urban subnetworks and rural feeder lines, where both cost-effectiveness and ease of maintenance are crucial considerations. The lightweight nature of AAC conductors reduces installation complexities and enhances the overall efficiency of power systems, ultimately leading to reduced operational costs and improved reliability for service providers.
Moreover, the inherent corrosion resistance of aluminum contributes to a longer lifespan and reduced maintenance needs, further solidifying AAC's role as a preferred choice in modern electrical applications. By integrating AAC conductors into electrical designs, stakeholders can not only meet stringent performance standards but also contribute to a sustainable energy future that prioritizes efficiency and reliability.
FAQS
: Concentric aluminum cables feature a central conductor surrounded by layers of aluminum strands, which enhances conductivity and minimizes electromagnetic interference, making them suitable for high-voltage applications.
The specific requirements of your project dictate the appropriate diameter and conductor area, which directly affect the current-carrying capacity of the cable.
Common insulation materials include XLPE (cross-linked polyethylene) and PVC (polyvinyl chloride), each with different thermal ratings and resistance properties.
The environmental conditions where the cable is installed influence its long-term performance and durability, making it essential to understand these factors before selection.
It is important to check the manufacturer's specifications for voltage rating, temperature range, and mechanical strength to ensure the cable meets all necessary standards for your electrical system.
There has been a 15% increase in the adoption of aluminum cables over traditional copper options, largely due to aluminum's lightweight nature, corrosion resistance, and cost-effectiveness.
Organizations that invest in high-quality aluminum cables, like those from Laurence Si Electric, can experience a 20% reduction in overall operational costs over time due to increased efficiency and longevity.
Laurence Si Electric Co., Ltd. leverages its technical expertise to provide superior aluminum cable options that meet global standards, enhancing performance and reliability in power distribution systems.
