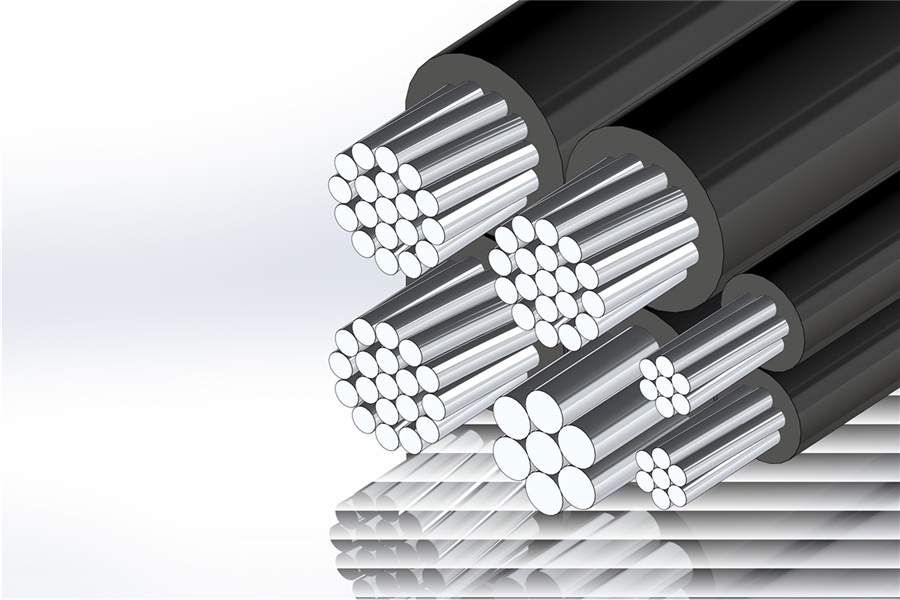

ABC CABLE SANS 1418 Self-supporting Aerial Cable
ABC CABLE SANS 1418 Self-supporting Aerial Cable

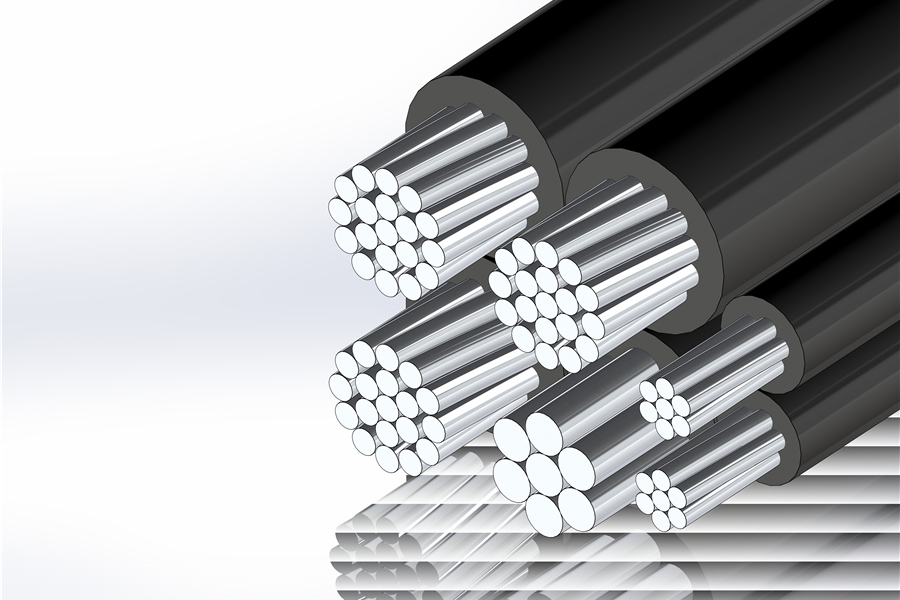

0.6/1kv Aerial Bundled Conductor Systems(Executive Standard: NF C33-209)
0.6/1kv Aerial Bundled Conductor Systems(Execut...

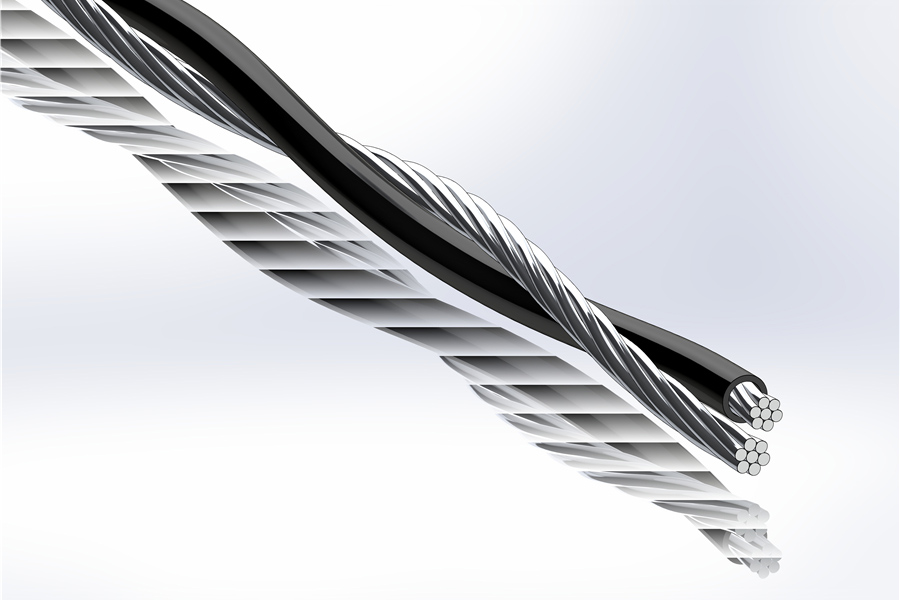

Neutral-Supported Power Cable Assemblieswith Weather-Resistant Extruded Insulationrated 600 Volts (Icea-S-76-474)
Neutral-Supported Power Cable Assemblieswith We...

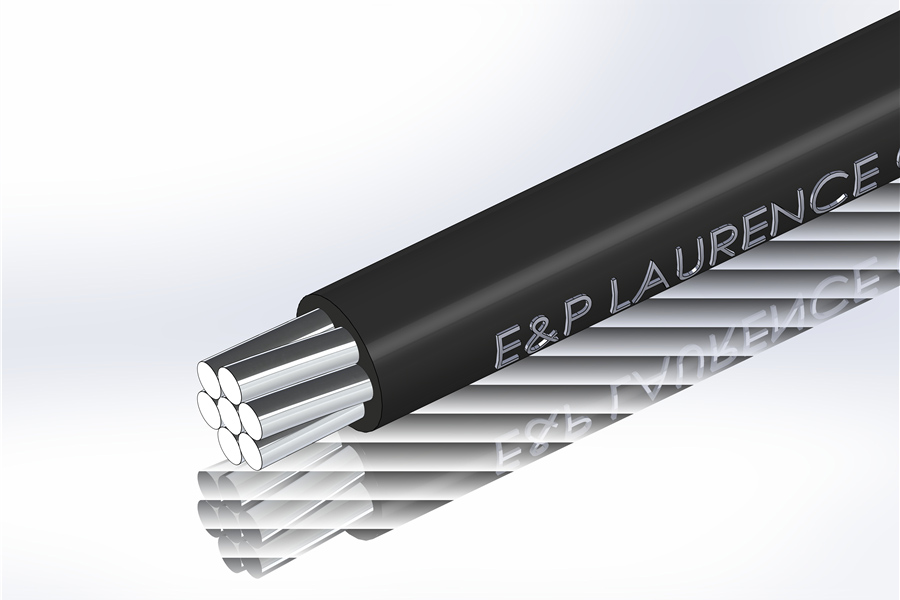

PVC Covered Conductor (BS 6485)
PVC Covered Conductor (BS 6485)

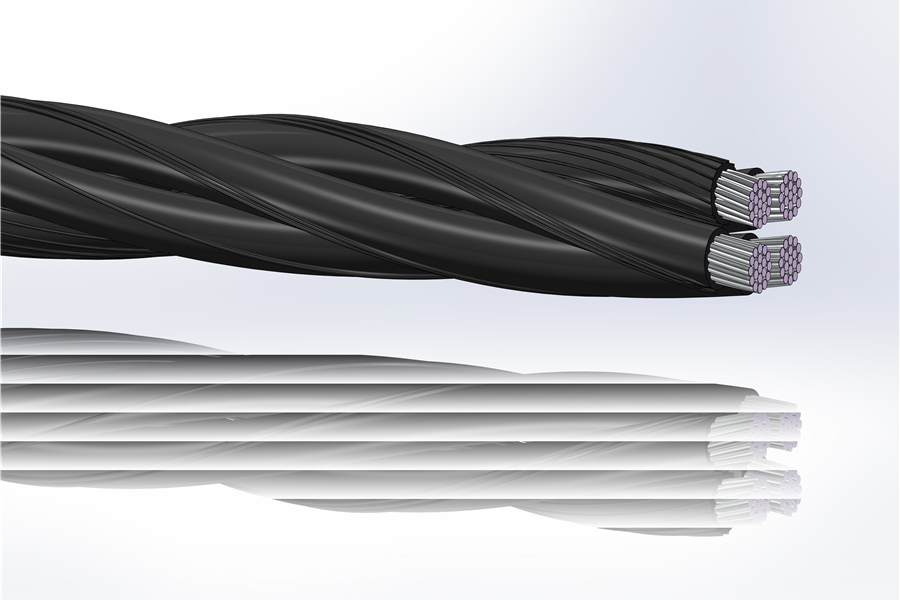

0.6/1kv ABC Cable BS 7870-5
0.6/1kv ABC Cable BS 7870-5

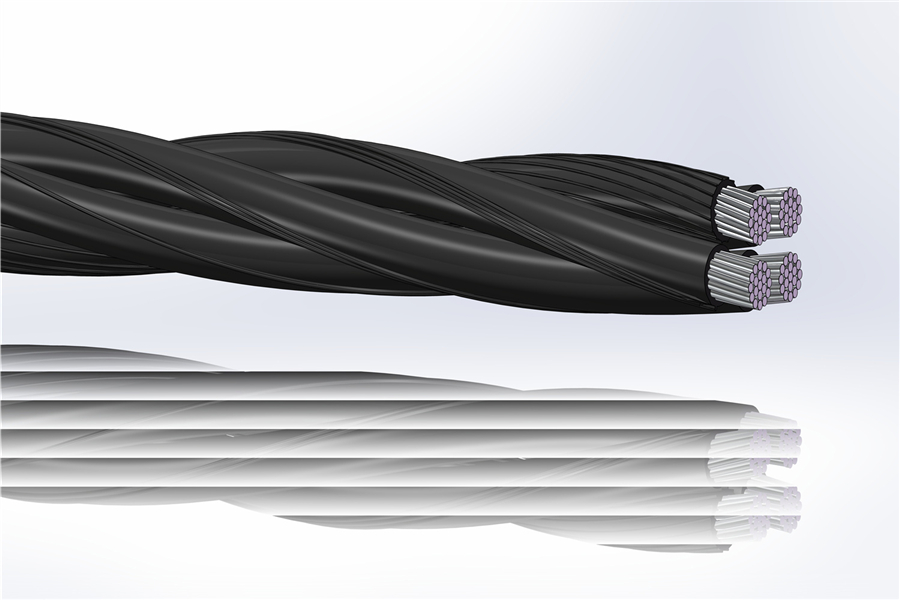

0.6/1kv ABC Cable AS 3560.1
0.6/1kv ABC Cable AS 3560.1

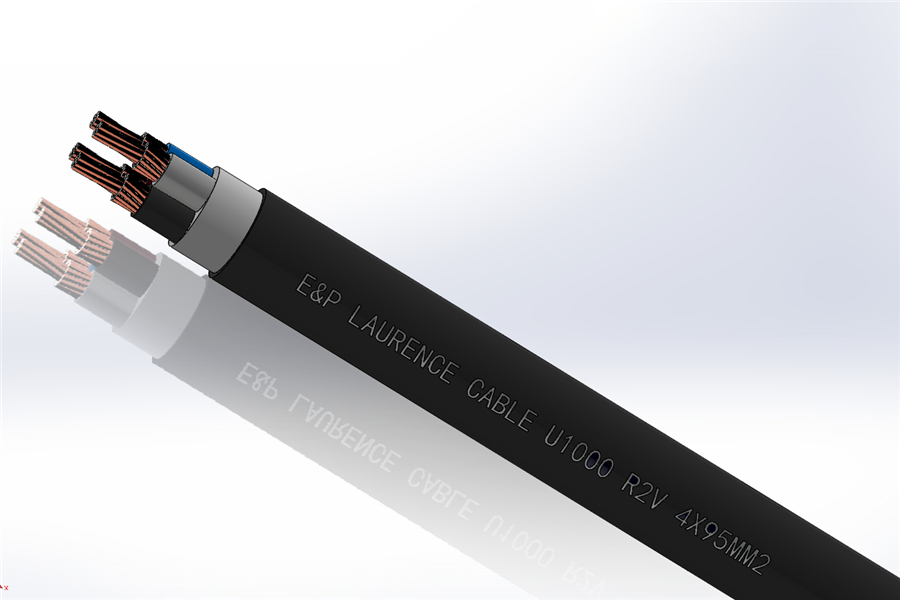

French Standard Industrial Cables U-1000 AR2V
French Standard Industrial Cables U-1000 AR2V

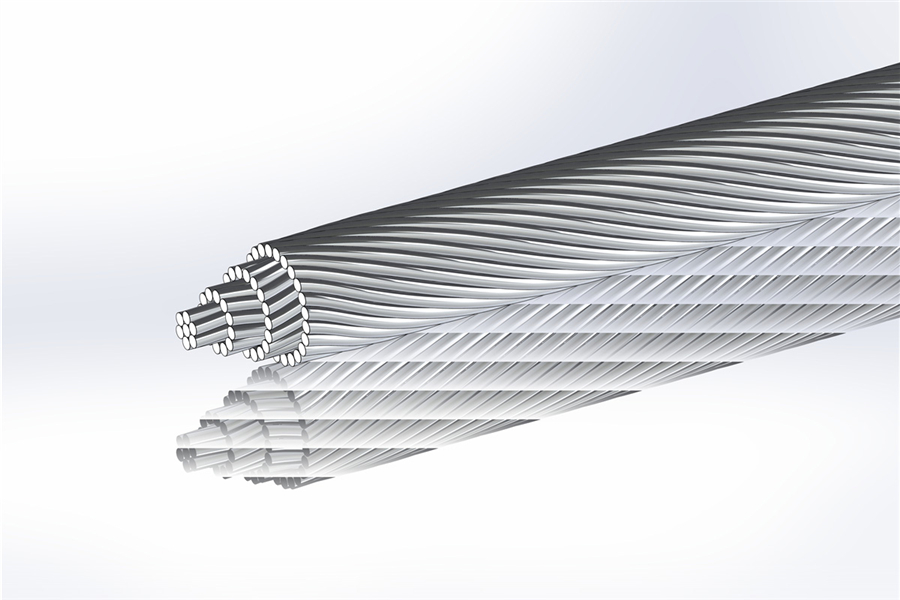

AAAC SPLN 41-8 BARE CONDUCTOR All Aluminum Alloy Conductor
AAAC SPLN 41-8 BARE CONDUCTOR All Aluminum Allo...

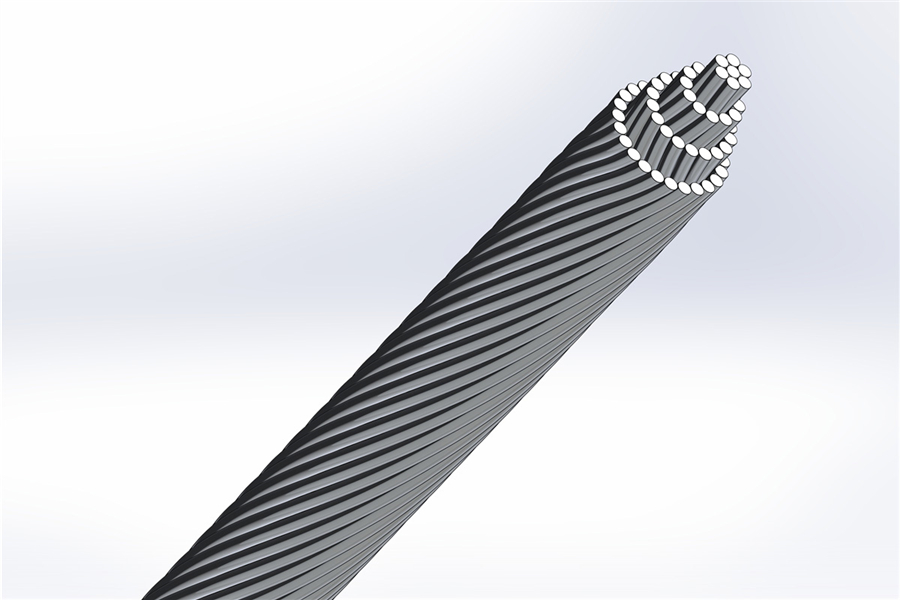

AAAC IEC 61089 All Aluminum Alloy Conductor
AAAC IEC 61089 All Aluminum Alloy Conductor
01

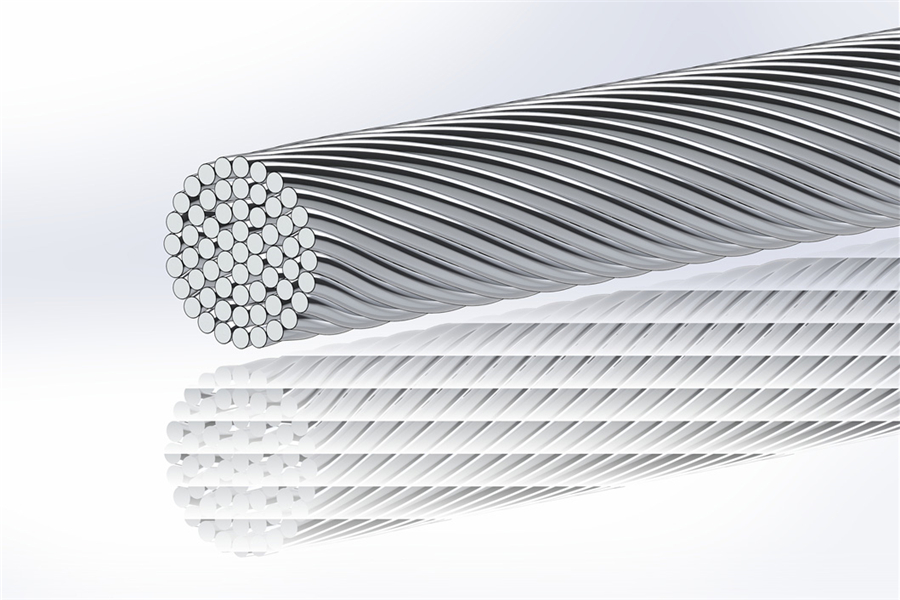

AAAC (4).jpg
AAAC (6).jpg
AAAC (5).jpg

AAC BS EN 50182 BS 215-1 All Aluminum Conductor

Execution standard: BS EN 50182  (Old Standard: BS 215-1)

Material: AAC adopts AL1 aluminum  material.

Product application: With a cost-effective profile compared to heavier conductor types, AAC aluminum stranded conductors offer an economical solution for large-scale electrical infrastructure projects without compromising basic performance.

AAC stands as a reliable all-aluminum conductor, crafted for optimal electrical performance with its pure aluminum composition.  Its lightweight design simplifies installation, while good corrosion resistance suits mild environmental conditions, making it a practical choice for distribution lines in less demanding settings.

    Contact us

    Product advantage

    AAC conductors find application in temporary power setups, such as construction sites or event venues, due to their easy installation and removal, ensuring reliable temporary electricity supply.

    AAC Standard:BS EN 50182  (Old Standard: BS 215-1)

    Type: AL1
    Aluminum Stranded Conductor(AAC)
    Code Name Old Code Name Sectional Area Wire Diameter&Stranding Diameter of Conductor Nominal Breaking Load Linear Mass Maximum Resistance at 20℃
    mm2 mm No. mm kN kg/km Ω/km
    23-AL1 MIDGE 23.3 2.06 7 6.18 4.2 63.9 1.2449
    27-AL1 GNAT 26.9 2.21 7 6.63 4.83 73.5 1.0643
    37-AL1 MOSQUITO 36.9 2.59 7 7.77 6.27 101.0 0.7749
    43-AL1 LADYBIRD 42.8 2.79 7 8.37 7.28 117.2 0.6678
    53-AL1 ANT 52.8 3.10 7 9.3 8.72 144.7 0.5409
    64-AL1 FLY 63.6 3.40 7 10.2 10.49 174.0 0.4497
    74-AL1 BLUEBOTTLE 73.6 3.66 7 10.98 11.78 201.7 0.3880
    79-AL1 EARWIG 78.6 3.78 7 11.34 12.57 215.1 0.3638
    84-AL1 GRASSHOPPER 84.1 3.91 7 11.73 13.45 230.2 0.3400
    96-AL1 CLEGG 95.6 4.17 7 12.51 15.30 261.8 0.2989
    106-AL1 WASP 106.0 4.39 7 13.17 16.95 290.1 0.2697
    106-AL1 BEETLE 106.4 2.67 19 8.01 18.08 292.7 0.2701
    132-AL1 BEE 132.0 4.90 7 14.7 21.12 361.5 0.2165
    158-AL1 HORNET 157.6 3.25 19 16.25 26.01 433.7 0.1823
    186-AL1 CATERPILLAR 185.9 3.53 19 17.65 29.75 511.7 0.1546
    213-AL1 CHAFER 213.2 3.78 19 18.9 34.12 586.7 0.1348
    238-AL1 SPIDER 237.6 3.99 19 19.95 38.01 653.7 0.1210
    266-AL1 COCKROACH 265.7 4.22 19 29.54 42.52 731.2 0.1081
    323-AL1 BUTTERFLY 322.7 4.65 19 32.55 51.63 887.9 0.0891
    373-AL1 MOTH 373.1 5.00 19 35 59.69 1026.5 0.0770
    372-AL1 DRONE 372.4 3.58 37 25.06 59.59 1027.2 0.0774
    415-AL1 CENTIPEDE 415.2 3.78 37 26.46 66.43 1145.2 0.0695
    486-AL1 MAYBUG 486.1 4.09 37 28.63 77.78 1340.8 0.0593
    530-AL1 SCORPION 529.8 4.27 37 29.89 84.77 1461.4 0.0544
    628-AL1 CICADA 628.3 4.65 37 41.85 100.54 1733.1 0.0459
    Note:The outermost layer is twisted to the right (Z).
